Description:

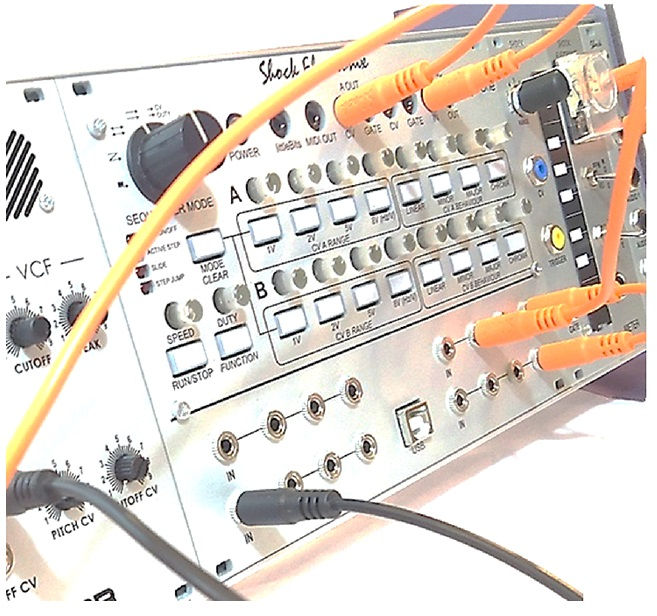

The Shock Electronix ESQU-One Step Sequencer is our Eurorack conversion of the super compact and highly versatile Korg SQ-1 Step Sequencer.
As standard, the Korg SQ-1 is a compact step sequencer with 2 x 8 steps. It's wealth of connection jacks allows it to be integrated with a Eurorack System, connected to the MS-20, and a variety of other synthesizers.
Vintage analog synths or the latest compact synths can be controlled from this single unit. You can also switch between a variety of synthesizer modes and use the step buttons to create performances overflowing with spontaneity.
As a descendant of the SQ-10, and just like the SQ-1, the EsQu-One supports the Hz/V standard, enabling it to perfectly control the MS-20 or MS-20 mini. It goes without saying the V/Oct standard is also supported, and the voltage level of the CV output (*) and polarity of the GATE output can be specified as appropriate for the device you've connected. This versatility will enable you to control a wide variety of other synthesizers as well.
* V/Oct supported for 1V, 2V, and 5V; Hz/V supported for 8V.
Just like the SQ-1, the EsQu-One provides two CV/GATE OUT channels, the standard MIDI OUT and USB MIDI, littleBits out (to connect to the littleBits synth kit by littleBits Electronics Inc.), plus the SYNC IN/OUT channel that allows you to connect to the volca series and monotribe. In addition to this, we’ve designed the EsQu-One with an added 4 rows of multiples, and easy access to the USB port at the bottom.
Read more about the Korg SQ-1 here.
Options:
The ESQU-One is available to buy as -
- A Fully assembled module, ready for instant plug ‘n’ play, no mess, no fuss....
- A Complete DIY kit, which includes everything you need for you to mod out your own SQ-1. Front Panel, PCB/s and Parts.......... The assembly build is up to you. (Assembly Guide is offered, but technical support is limited)
- A Basics kit, which includes the Panel and PCB..... And the rest is up to you. (No technical support is offered)
Specifications:
Width: 38hp
Max Depth: 30mm
Approx. Power Rating: 210ma
BOM (Build Of Materials): Click Here
EsQu-One - Step Sequencer Eurorack Module & Kit/s
Shipping Transit.
With Tracking 7-14 Business Days (Estimated)
Sales & Taxes.
The sale price listed is AUD (Australian Dollar), and is the final price to pay.
Payment.
Credit Card (Visa, Mastercard, Amex), PayPal.
Warranty/Returns.
1-Year warranty against defects, and manufacturing faults. (Click for more)
Additional Notes.
The device is suitable for use Worldwide
